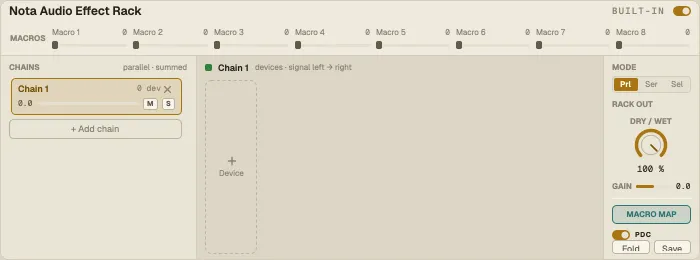

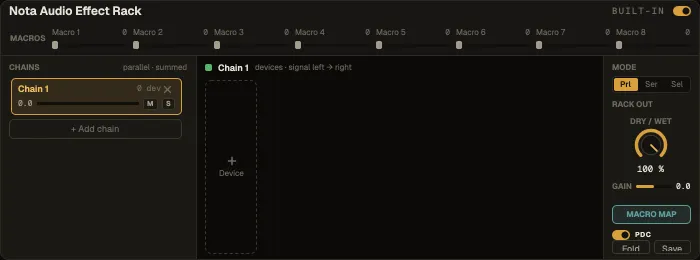

Nota Audio Effect Rack
Nota Audio Effect Rack holds several chains of effects inside one device. Process a sound three ways at once and blend them, build a reusable effect “patch” with a few macros on top, or switch effects by how loud the input is.
| Mode | What happens |
|---|---|
| Parallel (Prl) | Every chain processes the input; their outputs are summed |
| Series (Ser) | The chains run one after another |
| Select (Sel) | One chain plays, chosen by the input level |
Chains
Section titled “Chains”+ Add chain, then + Device in it — the menu lists the built-in effects and a Plug-ins submenu. Each chain has a name, its own gain and meter, mute and solo.
Rack output
Section titled “Rack output”Dry / Wet, Gain and PDC (latency compensation between chains), with MACRO MAP, Fold (hide the chains) and Save (store the rack as a preset). Eight named macros control any parameters in the chains.
- Parallel compression in a box: a dry chain plus a chain with a heavy Compressor, Parallel mode.
- New York reverb: a chain with only a Reverb set to Wet only, blended under the dry chain.
