Nota Chamber

Nota Chamber is two reverbs in one: a convolution engine that plays back real-sounding spaces, and an algorithmic engine for lush, modulated, shimmering tails. Blend them, or feed one into the other.

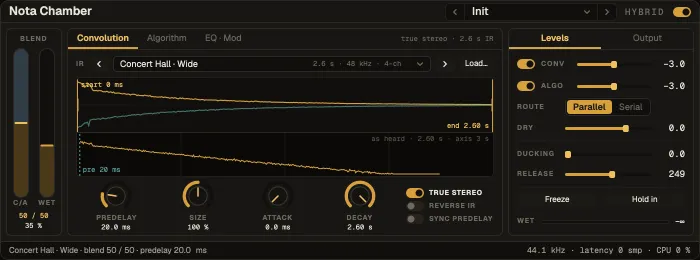

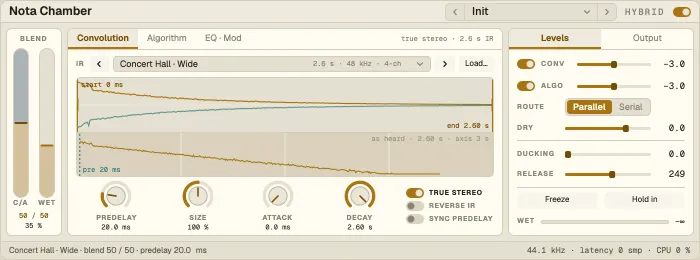

Nota Chamber, Convolution tab with the impulse responseNota Chamber, Convolution tab with the impulse response

Layout: the Blend column on the left (convolution ⇄ algorithm, and Dry/Wet), a centre panel with three tabs, a right panel (Levels / Output) and a status line.

Convolution

Section titled “Convolution”

Sixteen built-in impulse responses — halls (Concert Hall · Wide, Stone Vault, Cathedral, Scoring Stage), rooms (Wood Chamber, Live Room, Drum Room, Tiled Bathroom), plates (Vocal Plate, Bright Plate), Spring Tank, spaces (Car Park, Stairwell, Forest Clearing) and FX (Gated Room, Metal Tank) — or your own: drop a WAV, FLAC or MP3 on the IR view, or use Load… (mono, stereo or 4-channel true stereo).

Shape it with Start and Decay trims (drag them on the view), an Attack fade-in, Size (time-stretch), Reverse and True Stereo, plus a pre-delay (free or synced). The engine has zero latency; turning Zero Latency off saves CPU.

Algorithm

Section titled “Algorithm”

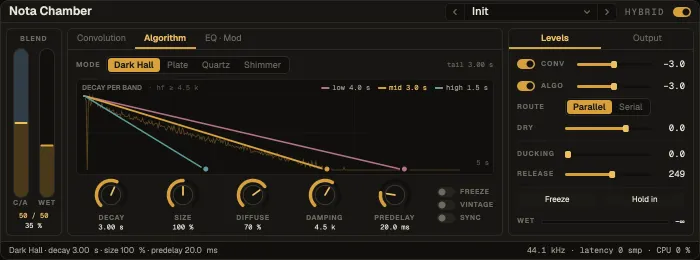

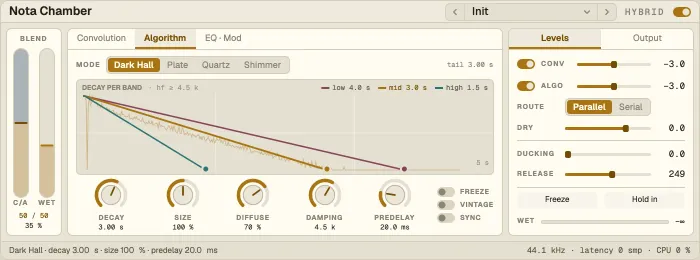

Nota Chamber, Algorithm tabNota Chamber, Algorithm tab

Dark Hall, Plate, Quartz or Shimmer: Decay per band (low, mid, high — drag the RT60 markers), Size, Diffuse, Damping, modulation, a Vintage colour, and for Shimmer a pitch shifter (fed back into the tail, or on top). Freeze holds the tail (input muted unless Freeze In is on). Its own pre-delay, free or synced.

EQ · Mod

Section titled “EQ · Mod”

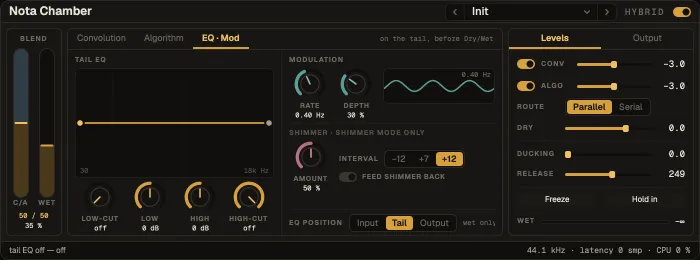

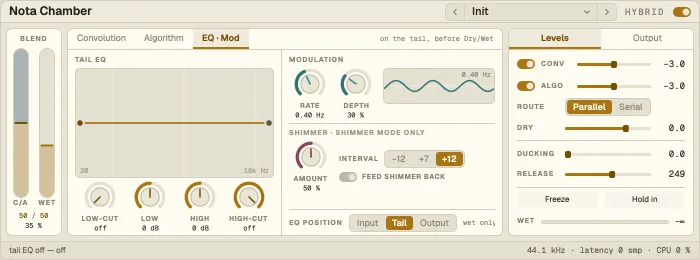

Nota Chamber, EQ · Mod tabNota Chamber, EQ · Mod tab

A 4-band EQ you can place at the input, on the tail or at the output — drag its handles — and the modulation settings.

Levels and Output

Section titled “Levels and Output”

Routing — parallel, or Serial (convolution into the algorithm). Dry, Dry/Wet, Width, bass mono, Ducking (the input pushes the reverb down while it plays), Wet only (for a return) and output gain.

Presets

Section titled “Presets”

22 factory presets: halls (Stone Vault, Concert Hall, Cathedral Wash, Scoring Stage, Vintage Hall, Ducked Vocal Hall), rooms (Wood Chamber, Drum Room, Live Room, Car Park, Gated Snare), plates and springs (Vocal Plate, Snare Plate, Spring Box, Metal Tank), effects (Wide Shimmer, Octave Down Bloom, Endless Pad, Reverse Swell, Forest Echoes) and for returns (Send · Big Hall, Send · Plate).
