Nota Flanger
Nota Flanger mixes a sound with a copy of itself delayed by a fraction of a millisecond to a few milliseconds. The delay moves, and a comb of notches sweeps up and down: the jet-plane swoosh.
| Control | What it does |
|---|---|
| Wave | Sine, triangle or saw |
| Hz / Sync | Free, 0.02–8 Hz, or synced from 2 bars to 1/16 (with dotted and triplets) |
| Rate | The speed, with its period |
| Stereo | The right channel’s LFO runs 0–180° behind the left — wider as it grows |
The window

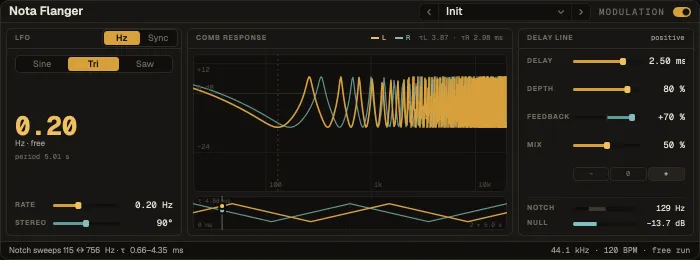

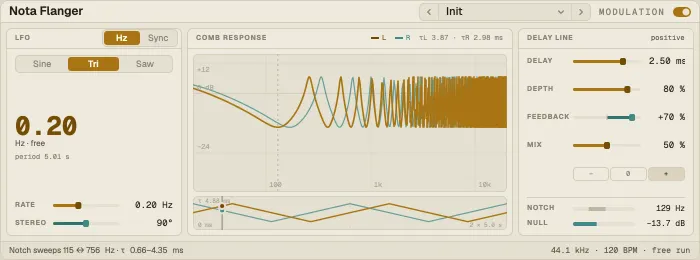

Section titled “The window”The live comb response of L and R — drag a notch left and right for Delay, up and down for Feedback — and under it the delay of both channels over two cycles.
Delay line
Section titled “Delay line”| Control | What it does |
|---|---|
| Delay | Base delay, 0.1–8 ms — where the comb sits |
| Depth | How far the LFO sweeps it |
| Feedback | Bipolar, with − / 0 / + snaps. Positive sharpens the peaks — the classic jet; negative mirrors the comb — hollow and tube-like. Near ±95 % it rings metallically |
| Mix | 0 dry · 50 % the deepest notches · 100 % wet only, a pure vibrato |
The column shows the first notch’s sweep and null depth; the status line names the mode.
Presets
Section titled “Presets”31 factory presets: jets (Jet Plane, Slow Jet, Takeoff, Tape Flange, Negative Jet, Drum Bus Jet), gentle (Gentle Sweep, Subtle Motion, Wide Stereo, Mono Sweep, Vocal Air, Pad Space), hollow (Hollow Bar, Hollow Tube, Inside Out, Half-Bar Hollow), metallic (Tin Robot, Metal Ring, Laser Zap, Comb Drone, Siren), synced (Quarter Swirl, Two-Bar Sweep, Eighth Pulse, Dotted Drift, Triplet Shimmer) and more (Vibrato, Flange Chorus, Doubler Wobble, Guitar Classic, Bass Swirl).
